The GuardTrak is a guard patrol tour data collecting terminal based on RFID technology. Its' function is to scan RFID chips, that has been pre-set in place around the route that requires partrolling. The system was developed to aid the management, to efficiently program and supervise their guard activities. By using the GuardTrak system, it will considerable reduce the probability of theft, fire and industrial accidents.

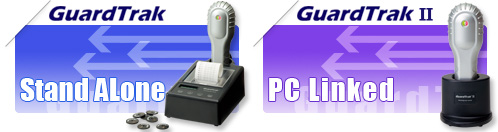

GuardTrak
GuardTrak

Printout sample

Printout sample (actual size)

Feature
1. Data analyzer & battery charger in one
2. Integrated printer
3. 3200 booking memory capacity
4. RFID checkpoint chips
5. Impact-resistant to protect stored data
6. Water proof
Basic package
Hand-held data collecting device
Printer station with integrated battery charger
Thermal paper roll
Master chip
3 Personnel tages
10 Checkpoint chips
Optional
Personnel ID tags
Start & End cards
Incident cards
Applications
1. Commercial building patrolling
2. Community & School patrolling
3. Factories & Warehouse patrolling
4. Airport & Car Park patrolling
5. Sports Ground & Park patrolling
6. Hotel & Hospital patrolling
Specifications
Data collecting hand-held device
Weight : approx. 240gram
Size(HWD) : 210 x 73 x 40(mm)
Power supply :
Rechargeable lithium batteries (3.7V)
Operating temperature: -10 to 55 Deg. C

Station box

Weight approx.949gram
Size(HWD): 240 x 139 x 90(mm)
Power supply:
Adaptor INPUT AC100~240V¡¢
               OUTPUT 6V...3A
Operating temperature: Room temperature

User's Manual DM
